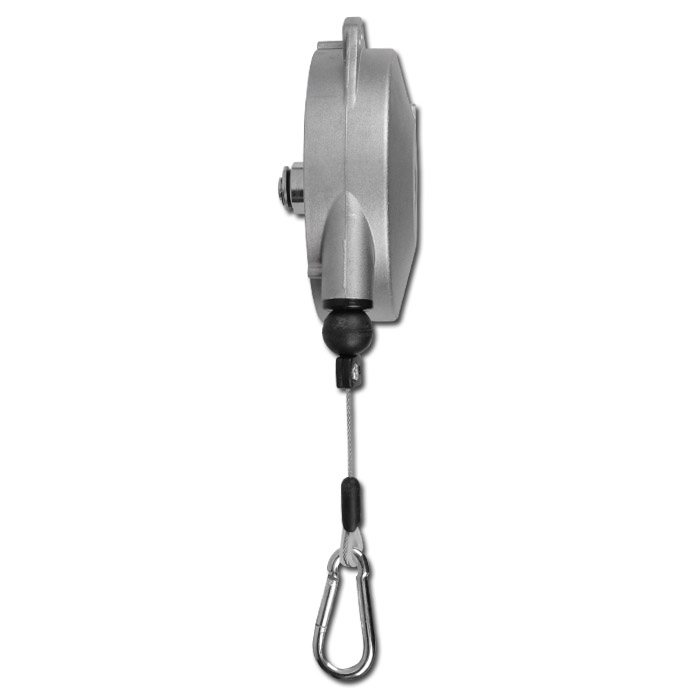

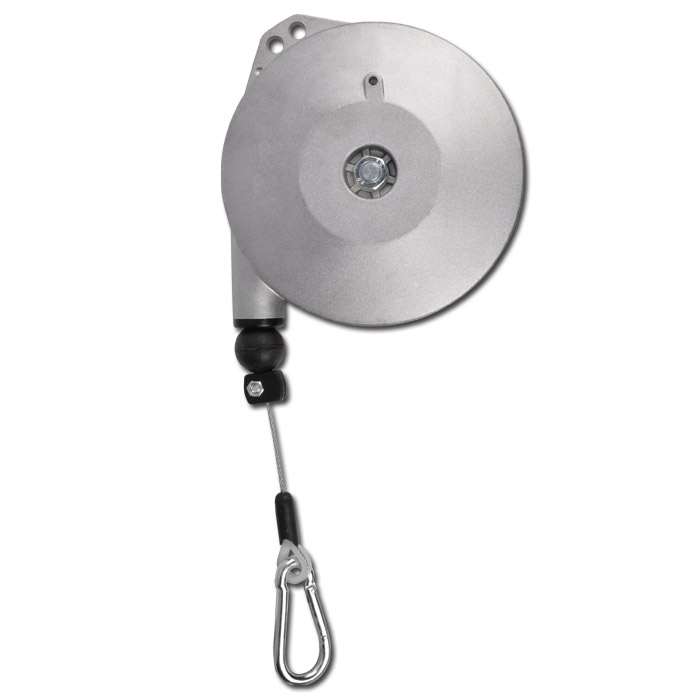

Balancers - Balancer type TCN - 105 kg - aluminum die-cast housing

Codice prodotto: 952100G30000

Descrizione breve

for electric and pneumatic tools, grinders, polishers, impact wrenches, rivet machines, spot welding guns, crane controls, ...

Informazioni maggiori...

Descrizione dettagliata
Variante
Spese di spedizione
Video
PDF

Descrizione dettagliata

Application

for electric and pneumatic tools, grinders, polishers, impact wrenches, rivet machines, spot welding guns, crane controls, ...

Product Description

Balancers Balancer make the suspended load almost weightless
A tool is mounted in the workplace in a device whose capacity range of the tool plus the weight of the cable or hose covering
Then the spring with the included Allen wrench on the exact weight set
Equipment and tools that depend on spring trains / balancer can access quickly and "Save" again.
Improvement of order, cleanliness and productivity at work
flexible and robust wire rope
low-friction bushings
precise cable guide
Safety hook
designed for long life spring
TCN 9354 TCN-9371 are equipped with conical drum

Technical Data

Capacities - 105 kg 0.4 kg
Housing Material - Aluminum Die Casting
Aerial - Stainless steel wire rope

for clean tidy work

Variante

Sustainability

Cable length

Rope diameter

locked

Annulla tutti filtri

	Sustainability	Cable length	Rope diameter	locked	Prezzo	incl. IVA	Codice prodotto
x	0,4-1,0 kg	1,6 m	2,0 mm	nein	€ 43,45	€ 51,71	95210TCN9311
x	1,0-2,0 kg	1,6 m	2,0 mm	nein	€ 48,95	€ 58,25	95210TCN9312
x	2,0-3,0 kg	1,6 m	2,0 mm	nein	€ 52,60	€ 62,59	95210TCN9313
x	1,0-2,5 kg	2,0 m	2,0 mm	nein	€ 117,25	€ 139,53	95210TCN9320
x	2,0-4,0 kg	2,0 m	2,0 mm	nein	€ 119,55	€ 142,26	95210TCN9321
x	4,0-6,0 kg	2,0 m	2,0 mm	nein	€ 140,35	€ 167,02	95210TCN9322
x	6,0-8,0 kg	2,0 m	2,0 mm	nein	€ 172,30	€ 205,04	95210TCN9323
x	2,0-4,0 kg	2,5 m	2,5 mm	nein	€ 135,85	€ 161,66	95210TCN9336
x	4,0-6,0 kg	2,5 m	2,5 mm	nein	€ 150,15	€ 178,68	95210TCN9337
x	6,0-8,0 kg	2,5 m	2,5 mm	nein	€ 162,70	€ 193,61	95210TCN9338
x	8,0-10,0 kg	2,5 m	2,5 mm	nein	€ 182,40	€ 217,06	95210TCN9339
x	10,0-14,0 kg	2,5 m	2,5 mm	nein	€ 206,45	€ 245,68	95210TCN9340
x	2,0-4,0 kg	2,5 m	2,5 mm	ja	€ 156,40	€ 186,12	95210TCN9346
x	4,0-6,0 kg	2,5 m	2,5 mm	ja	€ 177,85	€ 211,64	95210TCN9347
x	6,0-8,0 kg	2,5 m	2,5 mm	ja	€ 193,95	€ 230,80	95210TCN9348
x	8,0-10,0 kg	2,5 m	2,5 mm	ja	€ 214,50	€ 255,25	95210TCN9349
x	10,0-14,0 kg	2,5 m	2,5 mm	ja	€ 291,50	€ 346,88	95210TCN9350
x	4,0-7,0 kg	2,0 m	3,0 mm	nein	€ 374,90	€ 446,13	95210TCN9354
x	7,0-10,0 kg	2,0 m	3,0 mm	nein	€ 377,65	€ 449,40	95210TCN9355
x	10,0-14,0 kg	2,0 m	3,0 mm	nein	€ 393,80	€ 468,62	95210TCN9356
x	14,0-18,0 kg	2,0 m	3,0 mm	nein	€ 399,50	€ 475,40	95210TCN9357
x	18,0-22,0 kg	2,0 m	3,0 mm	nein	€ 434,50	€ 517,05	95210TCN9358
x	22,0-25,0 kg	2,0 m	3,0 mm	nein	€ 437,25	€ 520,33	95210TCN9359
x	10,0-15,0 kg	2,0 m	4,0 mm	nein	€ 512,15	€ 609,46	95210TCN9361
x	15,0-20,0 kg	2,0 m	4,0 mm	nein	€ 559,45	€ 665,75	95210TCN9362
x	20,0-25,0 kg	2,0 m	4,0 mm	nein	€ 575,85	€ 685,26	95210TCN9363
x	25,0-30,0 kg	2,0 m	4,0 mm	nein	€ 594,00	€ 706,86	95210TCN9364
x	30,0-35,0 kg	2,0 m	4,0 mm	nein	€ 676,50	€ 805,03	95210TCN9365
x	35,0-45,0 kg	2,0 m	4,0 mm	nein	€ 728,20	€ 866,56	95210TCN9366
x	45,0-55,0 kg	2,0 m	4,0 mm	nein	€ 770,00	€ 916,30	95210TCN9367
x	55,0-65,0 kg	2,0 m	4,0 mm	nein	€ 831,60	€ 989,60	95210TCN9368
x	65,0-75,0 kg	2,0 m	4,0 mm	nein	€ 961,40	€ 1.144,07	95210TCN9369
x	75,0-90,0 kg	2,0 m	5,0 mm	nein	€ 1.018,60	€ 1.212,13	95210TCN9370
x	90,0-105,0 kg	2,0 m	5,0 mm	nein	€ 1.260,60	€ 1.500,11	95210TCN9371
