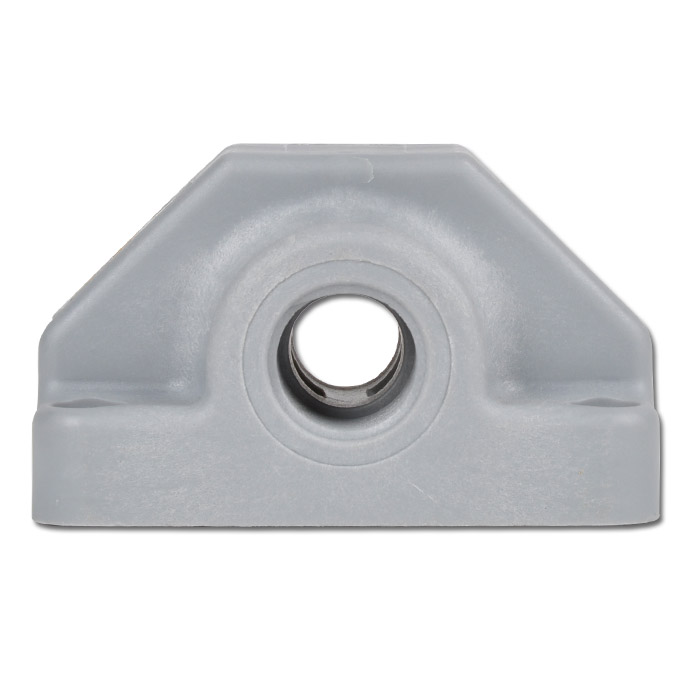

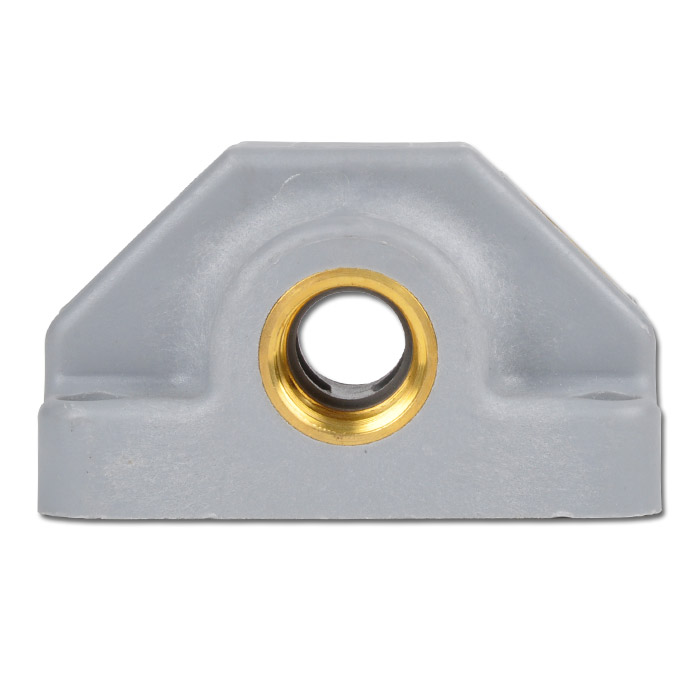

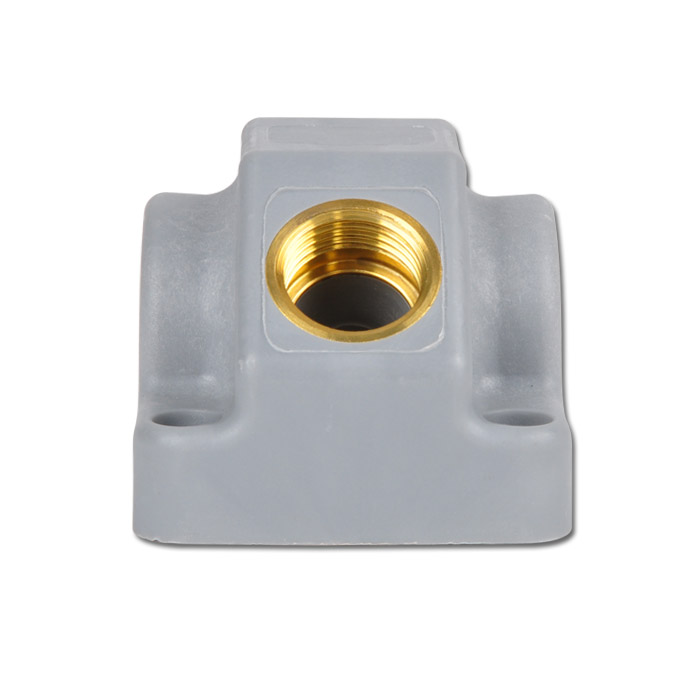

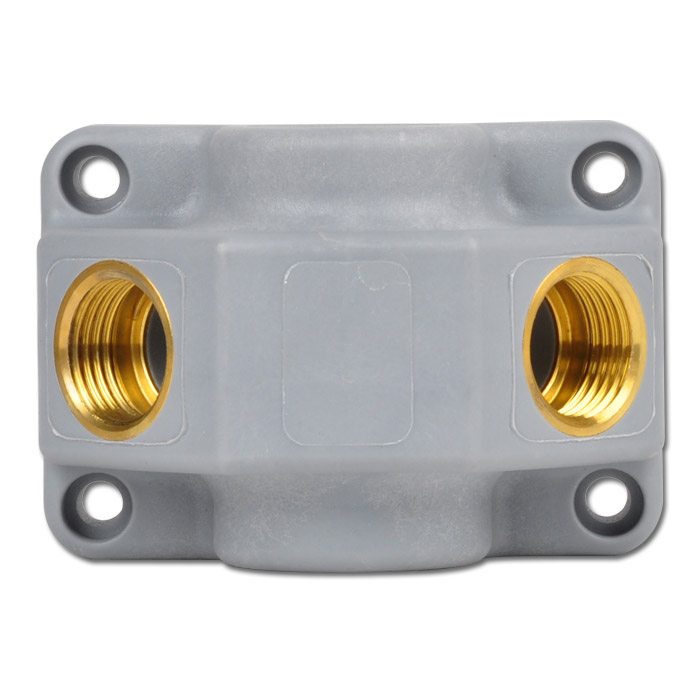

Ditribution Box VDK 21 Inlet1 G1/2/1 G1/2i Outlet2 G1/2i/0
Codice prodotto: 420921000000
EAN 4050601135201
Descrizione breve- The distribution box "VDK 21" provides a variety of installation version and can be used as input, passage and end distributor on compressed air pipelines
- Especially for clean-room installations
Application- The distribution box "VDK 21" provides a variety of installation version and can be used as input, passage and end distributor on compressed air pipelines
- Especially for clean-room installations
Product Description- In connection with plastic plugs or brass compression fittings, an optimal compressed air distribution is provided
- For clean-room installation the distributor can be connected directly to the air supplying chain
- This is saving time and installation material
- Lower connection thread with brass insert
- Sealing material like hemp or anaerobic sealants and adhesives can be used
Technical Data- Material - Premium Plastic Housing
- Thread Insert - Brass
- Color - Grey RAL 7001
- Wall or Ceiling Mounting with 4 Screws
- Operating Pressure - Max. 16 bar at +20° C for distributor without mounting
- Product Description - From -20° C to + 45° C
- Inlet Above/Below - 1 G 1/2i /1 G1/2i
- Outlet Infront/Back - 2 G 1/2i /0
