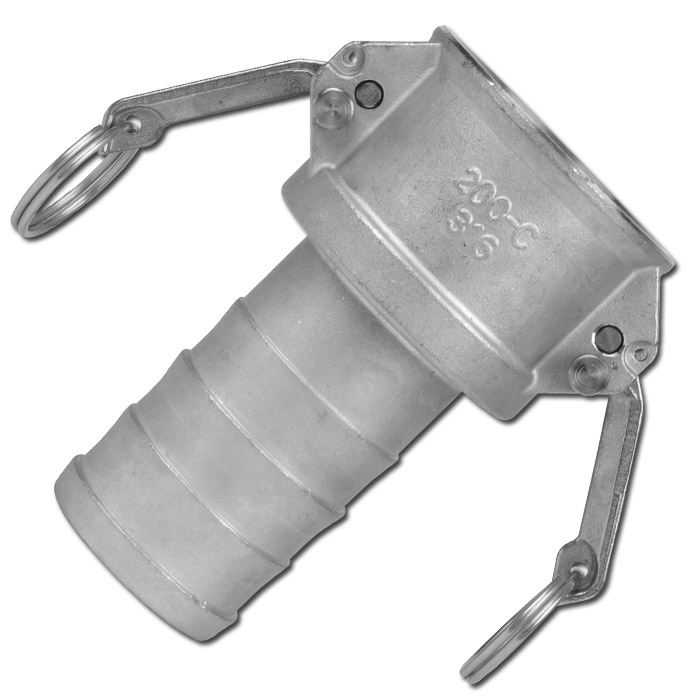

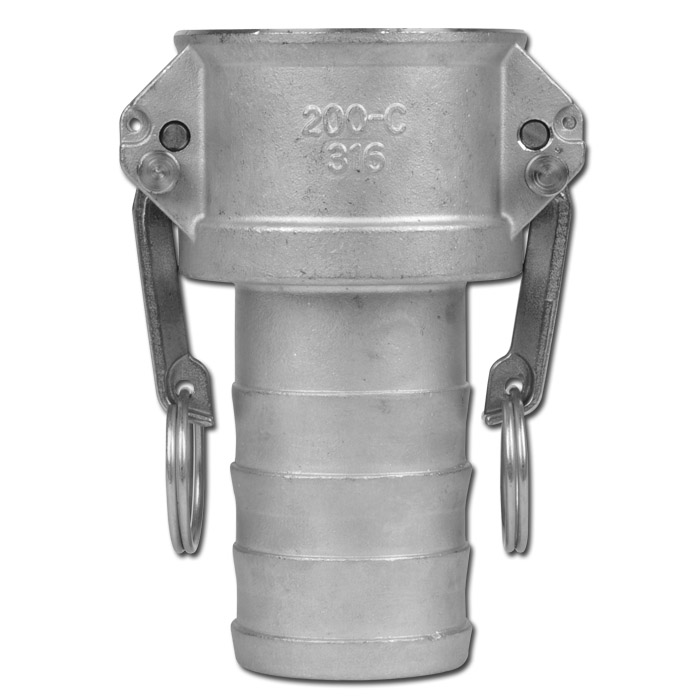

Kamlock Coupler to Hose Tail Part C

Codice prodotto: KLDSX0000000
Descrizione breve
  • Kamlock Coupler to Hose Tail Part C
  • Function: The easy to use connection is made simply by pushing the coupler onto the adaptor and closing the cam locking handles.
  • As Plugs you can use all MIL-C-27487 normed Coupling Plugs


Descrizione dettagliata

Application
  • Kamlock Coupler to Hose Tail Part C
  • Function: The easy to use connection is made simply by pushing the coupler onto the adaptor and closing the cam locking handles.
  • As Plugs you can use all MIL-C-27487 normed Coupling Plugs
Product Description
  • Vantages: The coupler is automatically locked, Locking Pins can not be lost
  • Worldwide acc. to MIL-C-27487
Technical Data
  • Material: Stainless Steel VA 1.4408
  • Sealing: NBR
  • Grip: Stainless Steel
  • Ring: Stainless Steel
  • Temperature Range: -10°C up to Max. 80°C
  • Pressure Range: 0 to 16 bar, as well as for rough vacuums
  • Scope of Supply: including ring and locking chain

Variante

Material
Pressure
Thread
DN

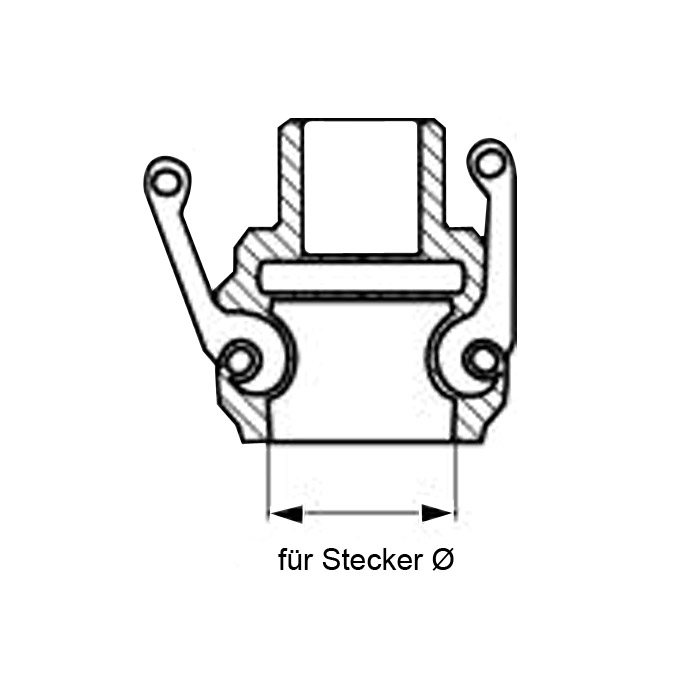

For Plug-Ø

Annulla tutti filtri

Material Pressure Thread DN For Plug-Ø Prezzoincl. IVACodice prodotto
x  VA 1.4408  16 bar  25  25 (1")  37 € 46,60 € 55,45 KLDS25ES-S00
x  VA 1.4408  16 bar  32  32 (11/4")  45 € 62,45 € 74,32 KLDS32ES-S00
x  VA 1.4408  16 bar  38  40 (11/2")  53 € 62,55 € 74,43 KLDS38ES-S00
x  VA 1.4408  16 bar  50  50 (2")  63 € 73,70 € 87,70 KLDS50ES-S00
x  VA 1.4408  16 bar  63  60 (21/2")  76 € 105,95 € 126,08 KLDS63ES-S00
x  VA 1.4408  16 bar  75  75 (3")  92 € 111,15 € 132,27 KLDS75ES-S00
x  VA 1.4408  16 bar  100  90 (4")  120 € 157,65 € 187,60 KLDS100ES-S0
x  VA 1.4408  16 bar  150  140 (6")  175 € 448,40 € 533,60 KLDS150ES-S0
