Kamlock-Coupling Male Coupler Part B

Codice prodotto: KLDGX0000000
Descrizione breve
  • Kamlock-Coupling Male Coupler Part B
  • Function: The easy to use connection is made simply by pushing the coupler onto the adaptor the locking handles are closed automatically.


Descrizione dettagliata

Application
  • Kamlock-Coupling Male Coupler Part B
  • Function: The easy to use connection is made simply by pushing the coupler onto the adaptor the locking handles are closed automatically.
Product Description
  • Vantages: Coupled automatically locked, lockin pins can not be lost, full passage, low pressure lost
  • Worldwide acc. to MIL-C-27487
Technical Data
  • Material: Stainless Steel VA 1.4408
  • Sealing: NBR
  • Grip: Stainless Steel
  • Ring and Chain: Stainless Steel
  • Temperature Range: -10°C up to Max. 80°C
  • Pressure Range: 0 to 16 bar, as well as for rough vacuums
  • Scope of Supply: including ring and locking chain

Variante

Material
Pressure
Thread
DN

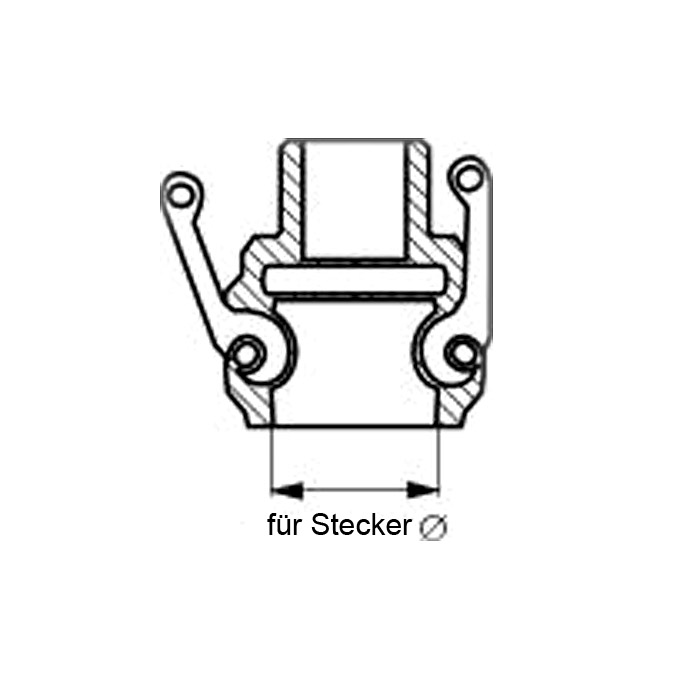

For Plug-Ø

Annulla tutti filtri

Material Pressure Thread DN For Plug-Ø Prezzoincl. IVACodice prodotto
x  VA 1.4408  16 bar  R 1"  25 (1")  37 € 41,20 € 49,03 KLDG10ES-S00
x  VA 1.4408  16 bar  R 11/4"  32 (11/4")  45 € 55,30 € 65,81 KLDG114ES-S0
x  VA 1.4408  16 bar  R 11/2"  40 (11/2")  53 € 59,70 € 71,04 KLDG112ES-S0
x  VA 1.4408  16 bar  R 2"  50 (2")  63 € 67,75 € 80,62 KLDG20ES-S00
x  VA 1.4408  16 bar  R 21/2"  60 (21/2")  76 € 77,60 € 92,34 KLDG212ES-S0
x  VA 1.4408  16 bar  R 3"  75 (3")  92 € 100,80 € 119,95 KLDG30ES-S00
x  VA 1.4408  16 bar  R 4"  90 (4")  120 € 128,90 € 153,39 KLDG40ES-S00
x  VA 1.4408  16 bar  R 6"  140 (6")  175 € 286,80 € 341,29 KLDG60ES-S00
